Cartridge Type Filter Units
|
|
*Cleaning *Electroplating
*Carbon Treatment *Water Purification
|
|

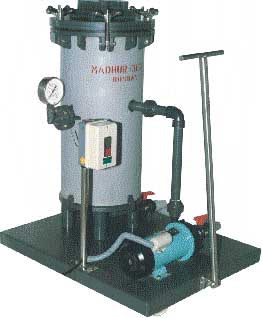

Cartridge type
filtration units comprising of seal type PP chemical pump or sealless magnetic drive powered by AC motor of
PVC, PP or CPVC non metallic corrosion proof maintenance free filter
chamber (also in S.S.) with cartridge type filter elements and
standard fittings. Available in a wide range from miniature to
Industrial models :
|
|
|
|
|
|
MODEL
|
CAPACITY
(lph)
|
Filtering
Area Sq. ft.
|
|
KC-F-1
KC-F-2
KC-F-3
KC-F-4
KC-F-5
KC-F-6
|
200/100
500/250
1000/500
2500/1250
5000/2500
10,000/5000
|
1.75
3.5
7.0
10.5
24.5
35.0
|
|
|
|
|
|
Four-in-One System :
A compact innovation of 4-in-1 In-Tank Technology.
It is easy to carry & instal.
Vertical Pump, no priming, sealless
& leak proof, no spillage. Pumps .Filters.
Agitates & Treats by activated carbon
by separate attachments and hence most ideal
for plating units a wide range pump capacity
upto 4500 LPH,
Filters upto 10,000
LPH with multiple cartridges.
|
|
|
|
|
|
Pre-Filter Chamber :
(Bag, Carbon or Cartridge individually or in combination) : This is
an on-line filtering device with or w/o pump set for flow upto 5000 lit/hr. upto
10 micron with replaceable filter bags, activated carbon or filtering
cartridge. Must for contaminated plating solution or water containing
excessive dissolved solids, thereby enhancing efficiency of filter /
DM water plant.
|
|
|
|
|
|
CARTRIDGE FILTER ELEMENTS in sizes 5, 10, 20 &
40" in micron porosity of 25, 10, 5 & 1 made from Polypropylene fibre in spun cloth or yarn wound. Granular
Activated Carbon filled Cartridge is also supplied either loose or
with on-line housing. Disc type PP filter cloth media in woven or
non-woven available open or stack form. Also P.P. or Polycarbonate moulded filter housings.
PLATE
FILTER PRESS for solid-liquid seperation
dewatering hazardous wastes, sludges,
reclamation of solids and recovery of chemicals solution. Recessed, gasketed PP plates with manual or air operated
Hydraulic enclosure having models upto 50
cu. ft., plate sizes 355 x 355 mm to 1200 x 1200 mm. Used by Chemical
Mfrs. and in Effluent Treatment Plant.
|
|
|
|
|
|
|
|
